S32G车载中央网关

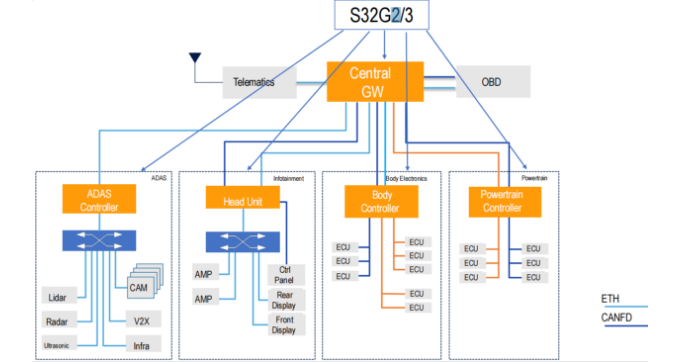

Application

•    Service-oriented gateways
•    Domain controllers
•    C-V2X + T-BOX
•    IDPS, Firewall
•    OTA Master
•    Support DDS, SOMEIP
Core
•    CPU: Support S32G233M, S32G274A, S32G399
•    PMIC: VR5510
•    Memory: 4GB LPDDR4, 32GB EMMC, 64MB OSPI              FLASH
External Conn
•    4 x 1G base-T1
•    3 x 100M base-T1
•    1 x 100M base TX
•    12 x CANFD
•    4 x Master LIN, 1 x Slave LIN
•    1 x PCIe 3.0 for WIFI+BT, V2X Module, SSD
•    2 x USB3.0
•    TF Card Support

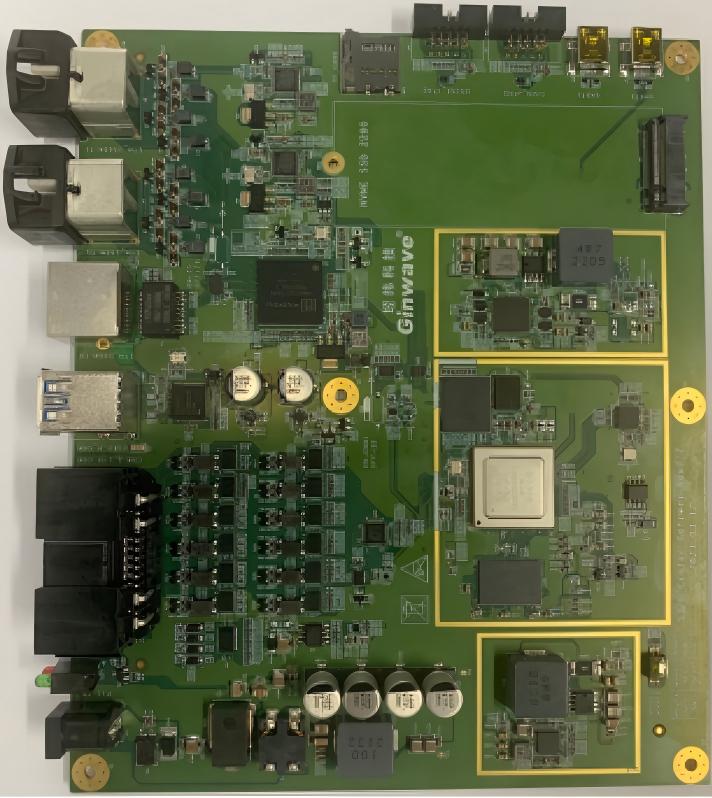

PCB Board
•    Size: 180MM x 150MM
•    FR4  8 Layers through hole
